The “Group Organization” Model in Aviation Accident Investigation

Modern aviation accident investigation generally follows a structured, multidisciplinary framework. Major civil and military investigative authorities often organize complex aircraft investigations using a group-based model, in which technical specialists are assigned to defined areas of analysis and their findings are brought together in a coordinated reconstruction.

This model reflects published investigative guidance issued by bodies such as the International Civil Aviation Organization (ICAO) and the National Transportation Safety Board (NTSB). Comparable structured approaches also appear in military investigative materials. The broader point is that aviation accident reconstruction is ordinarily based on disciplined methodology rather than informal speculation.

Published Investigative Frameworks

ICAO’s Manual of Aircraft Accident and Incident Investigation and the NTSB’s Major Investigations Manual describe systematic approaches to accident evaluation. These frameworks organize investigation into defined analytical groups, each responsible for particular categories of technical evidence.

Although procedural details may vary among agencies, the core structure is similar across major investigations: accident reconstruction proceeds through coordinated technical disciplines working within a unified investigative framework.

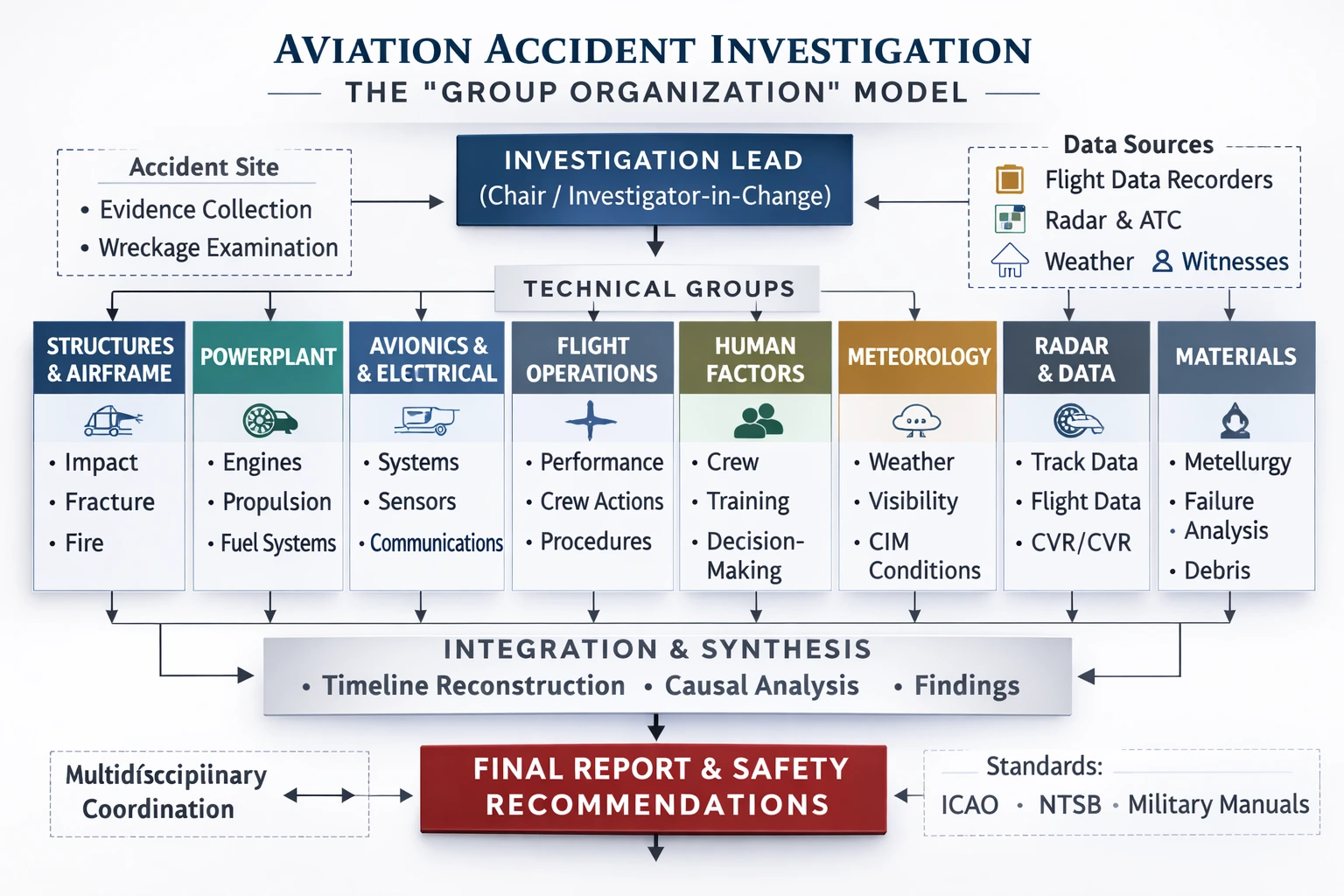

Multidisciplinary Technical Groups

In a major aircraft investigation, distinct technical groups may be assigned to areas such as:

• Structures and airframe evaluation
• Powerplant and propulsion systems
• Avionics and electrical systems
• Flight data and radar analysis
• Operations and flight performance
• Meteorology
• Human factors
• Materials and metallurgical examination

Each group may examine physical evidence, documentation, recorded data, and operational history within its specialty. Findings are documented and later synthesized into a broader sequence-of-events analysis.

Scene Evaluation and Physical Evidence

Investigation often begins with examination of the accident site. Wreckage distribution, structural deformation, impact signatures, and system condition can provide early insight into aircraft attitude, energy state, and system performance at impact.

Physical components may then undergo detailed laboratory evaluation. Metallurgical analysis, fracture-surface examination, and materials testing may help distinguish between pre-impact failure and impact-related damage. Engine and propulsion systems may also be disassembled to evaluate internal component condition and evidence of rotational energy.

The investigative objective is not to isolate a single data point, but to assess how multiple technical indicators fit together within a coherent reconstruction.

Data Integration and Reconstruction

Many aircraft are equipped with digital recording systems. Flight data recorder information, cockpit voice recordings where available, radar data, and other electronic sources may be integrated to evaluate aircraft performance and pilot inputs.

Interpretation of recorded data requires familiarity with system architecture, parameter limitations, and data-resolution constraints. Reconstruction often involves correlation between recorded information and physical evidence observed at the scene.

The group-organization model emphasizes disciplined synthesis: no single technical discipline necessarily determines causation by itself. Rather, causation analysis typically emerges from the integration of structural, mechanical, operational, and environmental findings.

Relationship to Civil Litigation

In civil aviation litigation, technical findings developed during investigation may later be evaluated by legal counsel after a plane crash and assessed under evidentiary standards governing expert testimony. Courts consider whether reconstruction opinions are supported by sufficient data and reliable methodology.

Understanding the investigative structure underlying an aviation accident is therefore important not only for safety analysis, but also for the structured presentation of technical evidence in judicial proceedings.

For an overview of how aviation accident cases proceed within the civil litigation system, see the firm’s Aviation Accident Litigation page.

Consultation Regarding Aviation Accident Investigations

Families, referring attorneys, and journalists sometimes seek legal consultation or technical insight regarding aviation accidents and investigative issues discussed in these analyses. Inquiries may be directed to Katzman, Lampert & Stoll at the link below.
